High speed oil -free pattern template machine

Brand

SHUNFA

Model

SF 13090-XH

Category

SPECIAL MACHINE

Warranty

02

Weight

505

Dimension

1870x1335x1525

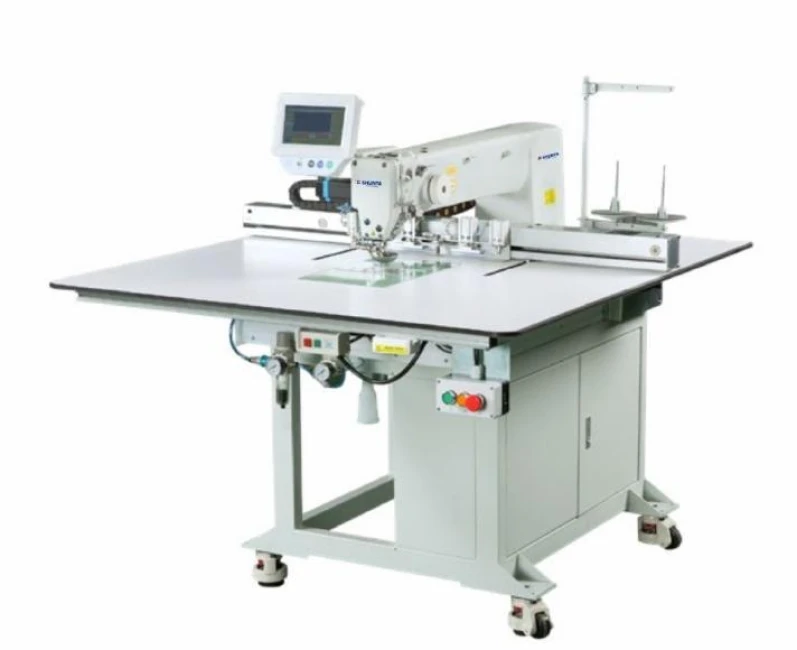

Shunfa brand SF 13090-XH model High speed oil -free pattern template machine , computerized pattern sewing machine with a 1300 × 950 mm sewing area, capable of 3000 stitches per minute. It supports RFID-based automatic pattern recognition, laser cutting, and knife cutting, making it suitable for automated sewing applications involving large templates and repetitive production tasks. X-Y drive mode- Dual synchronous tape transfer, Stitch- Single needle 301 stitch. Max. speed- (r/min) 3000. Stitch length (mm)- 0.5 – 12.7, Needle type- DB×1 (#8), #7–14. Hook type- Double full-rotation shuttle
Intermediate presser foot adjustment range (mm). Lifting amount: 20 mm / Standard stroke: 4 mm. Program input method- USB. Template holding mode- Pneumatic clip type or compression type. Voltage (V)- 220. Air pressure (MPa)- 0.4 – 0.6. Power (W)- 750. Gross / Net weight (kg)- 505 / 620. Carton size (mm)- 1870 × 1335 × 1525.

Standards

• ISO 17707
• SATRA TM55
