SPECIAL MACHINE

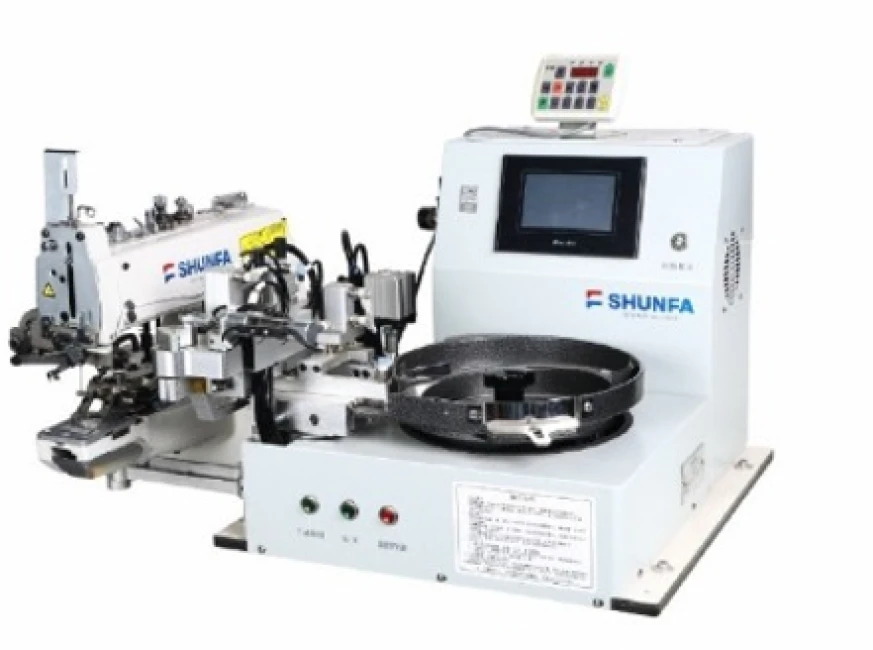

Automatic Button Feeder

Brand SHUNFA Model SF 373D-988A

Special features: 1.Hd touch panel , PLC system, more stable of the software, more intuitive of the page. 2. One-click width and thickness measurement function: If different size of buttons, just press one button and put one buttons into the thickness measurement plate ,adjusting the width、blocker and thickness auto maticlly. 3. We adopt pen cylinder feeding system, feeding buttons hundred percent of accurately and correctly. Feeding way softly, no sol se, long life using. 4. Support second time thread trimming function. 5. One key to open the "big button" function: When sewing big buttons(button diameter 220mm), only need to open "big button ON" on the screen, and the systemparameters will be adjusted automatically. 6. Anti-collision system: Operator foot on the pedal long times continue feeding button, mech nical system no collisions. Variety models supporting: This feeder can match all kinds brands of BROTHER、JUKI type button sewing machine, also can match existing machine which the factory alreadyusing, save the cost and no need to buy one more new button sewing machine.

Brand

SHUNFA

Model

SF 373D-988A

Category

SPECIAL MACHINE

Minimum order

1

Warranty

3 Years

Weight

146

Dimension

1.23*0.74*1.33

Special focus

Pneumatic Cylinder

Standards

• ISO 3379
• EN ISO 20344:2004
• ISO 20345-2011
