SPECIAL MACHINE

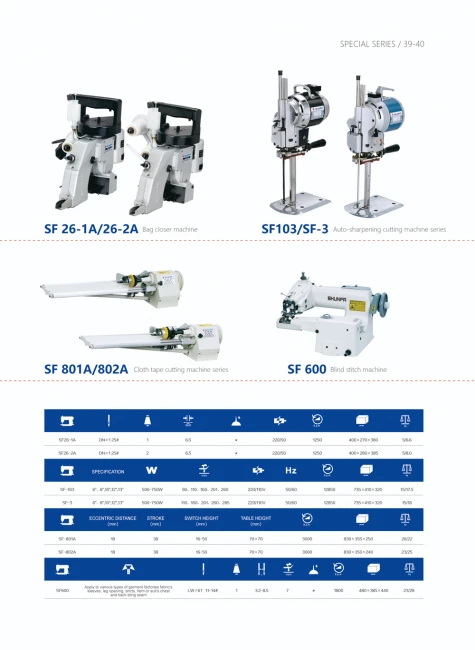

Cloth Tape Cutting Machine Series

Brand SHUNFA Model SF 801A

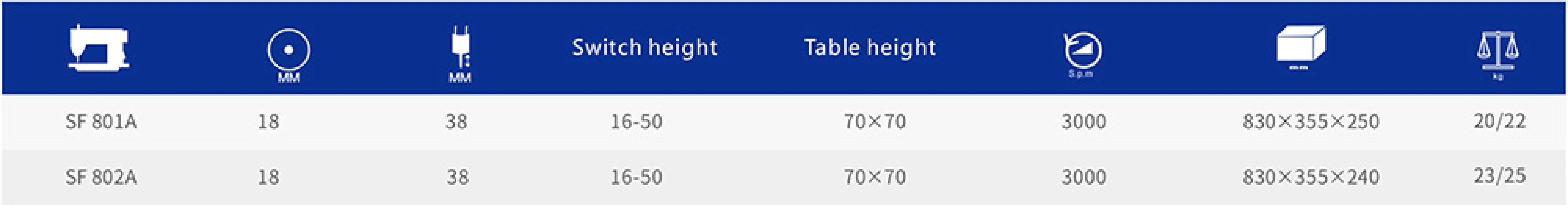

Shunfa brand semi-automatic, electric fabric strip and bias cutting machine. It is widely used in the apparel industry for slicing various materials—including cotton, knit fabrics, and synthetics—into uniform tape for binding and hemming operations. Machine Type: Single-knife cloth tape / fabric strip cutting machine. Max. Tape Width: Up to 90 mm - 100 mm (adjustable). Max. Speed: Up to 3,000 rpm. Power: Typically 400W to 550W (supports 220V/110V). Stroke Length: 38 mm. Closing Height: 16 mm - 50 mm. Machine Weight: ~ 20.5 kg - 25 kg (net weight). Fabric Capability: Easily handles thin, medium, and thick fabrics, as well as 45-degree bias/twill cuts . Smooth Feeding: Equipped with specialized feeding rollers to ensure consistent, tension-free material flow.Compact Footprint: Space-saving design, usually measuring around 820 mm × 350 mm × 265 mm.

Brand

SHUNFA

Model

SF 801A

Category

SPECIAL MACHINE

Minimum order

1

Warranty

3 Years

Weight

22

Related models

SF 802A

Standards

• ISO-4643
• ISO 3379
• ISO 17707
• ISO 7500-1
